scorpion

Presso la FlightTech è in arrivo il nuovo regolatore di velocità per elimodellismo Scorpion Commander 50V per motori brushless. Il regolatore è disponibile nelle versioni da 90A e 130A e fra le funzioni include anche quella di Governor.

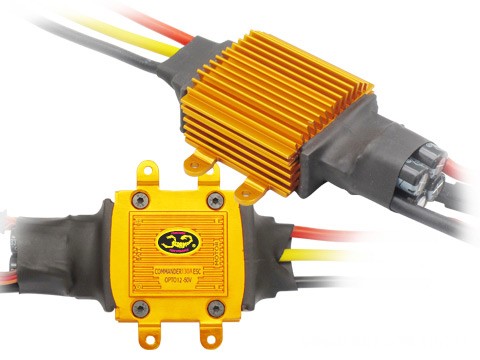

Scorpion Commander 50V 130A ESC

i812_popup_image

LVC= LOW VOLTAGE CUT : 120(12V) TO 480(48V).
BRK= BRAKE SETTING: 1: NO BRAKE, * 2: VERY SOFT BRAKE, 3: SOFT BRAKE, 4: HARD BRAKE, 5: VERY HARD BRAKE
AIR= ACTIVATE AIRPLANE MODE*
PCT= PROGRAM CUT TYPE (LVC TYPE): 1: CUT 50%*, 2: NO CUT JUST LED WARNING, 3: PULSE WARNING
MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15 Seconds, 2: 0.3 Seconds*, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds
CAR/B= DISABLED
COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY)
FREQ= DRIVE FREQUENCY: 1: 8 kHz *
SS= 1: SOFT START WITH OUT GOVERNOR MODE*, 2: SOFT START WITH GOVERNOR
TIM= MOTOR TIMING: 1: AUTO TIMING*, 2: 5 Degrees, 3: 15 Degrees, 4: 20 Degrees, 5: 25 Degrees, 6: 30 Degrees
GOV (P Gain) = POWER GAIN: 1 to 11 (SOFT to HARD), DEFAULT: 5*
SB (I Gain) = CURRENT GAIN: 1 to 8 (SENSITIVE to INSENSITIVE), DEFAULT: 5*
SOFT START DURATIO: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3:STRONG 20 Seconds

Factory Default Specifications
Weight (Without Connectors)     180g (6.35 oz)
Max Continuous Current     130 Amps
Operating Voltage Range     12 to 50.5 Volts
Max BEC Output     No BEC
On Resistance     0.68 mOhms
Size     83 x 67.9 x 18mm (3.27 x 2.67 x 0.71in)

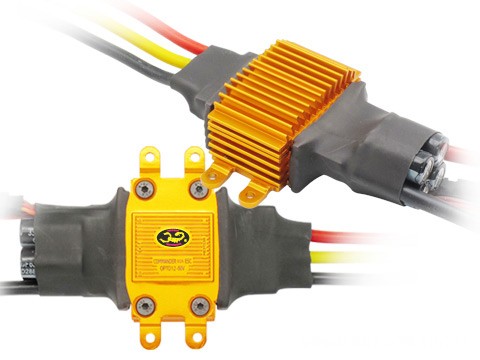

Scorpion Commander 50V 90A ESC

i809_popup_image

LVC= LOW VOLTAGE CUT : 120(12V) TO 480(48V).
BRK= BRAKE SETTING: 1: NO BRAKE, * 2: VERY SOFT BRAKE, 3: SOFT BRAKE, 4: HARD BRAKE, 5: VERY HARD BRAKE
AIR= ACTIVATE AIRPLANE MODE*
PCT= PROGRAM CUT TYPE (LVC TYPE): 1: CUT 50%*, 2: NO CUT JUST LED WARNING, 3: PULSE WARNING
MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15 Seconds, 2: 0.3 Seconds*, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds
CAR/B= DISABLED
COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY)
FREQ= DRIVE FREQUENCY: 1: 8 kHz *
SS= 1: SOFT START WITH OUT GOVERNOR MODE*, 2: SOFT START WITH GOVERNOR
TIM= MOTOR TIMING: 1: AUTO TIMING*, 2: 5 Degrees, 3: 15 Degrees, 4: 20 Degrees, 5: 25 Degrees, 6: 30 Degrees
GOV (P Gain) = POWER GAIN: 1 to 11 (SOFT to HARD), DEFAULT: 5*
SB (I Gain) = CURRENT GAIN: 1 to 8 (SENSITIVE to INSENSITIVE), DEFAULT: 5*
SOFT START DURATIO: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3:STRONG 20 Seconds

Factory Default Specifications
Weight (Without Connectors)     180g (6.35oz)
Max Continuous Current     90 Amps
Operating Voltage Range     12 to 50.5 Volts
Max BEC Output     No BEC
On Resistance     0.91 mOhms
Size     83 x 67.9 x 18mm (3.27 x 2.67 x 0.71in)
