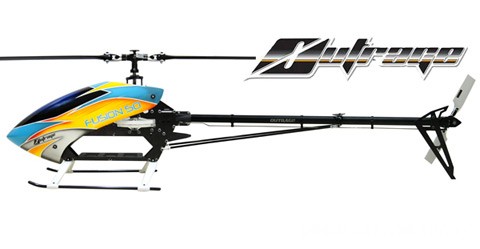

fusion50Da febbraio 2011 sarà disponibile il nuovo elicottero Outrage Fusion 50 per volo acrobatico 3D. Il modello verrà venduto in kit nella versione con testa del rotore flybar e flybarless. Il kit include il telaio realizzato in fibra, la trasmissione, rotore principale con componenti in alluminio 7075-T651 lavorati con macchine CNC (a controllo numerico) per garantirne la qualità, fusoliera e carrello di atterraggio. Per completare l’Outrage Fusion 50 andranno acquistate separatamente le parti elettroniche come, motore brushless, servi, regolatore di velocità, ricevente, giroscopio, batterie e radiocomando.

dsc_0249_1

fusion501

50fusion

Caratteristiche tecniche Outrage Fusion 50:

* Lunghezza: 1.219 millimetri
* Altezza: 368 millimetri
* Larghezza: 203mm
* Dimensioni rotore principale 600-640 millimetri
* Diametro del rotore principale: 1.355 millimetri 1.425 millimetri
* Lunghezza pale di coda: 95mm
* Diametro rotore di coda: 250mm
* Main Gear ratio: Variabile
* Rapporto di rotore di coda 4.583:1

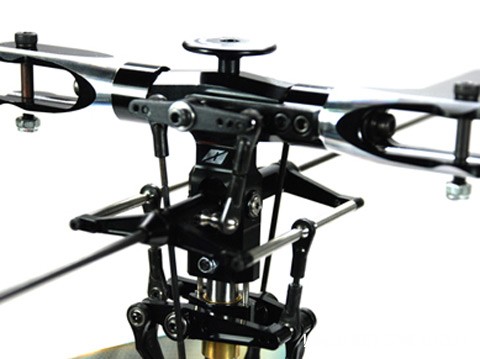

1. Head System
* . Fully adjustable head allowing multiple setups from high stability to maximum agility making it perfect for the beginner to advanced pilot.
* . CNC 075-T651 American alloy on critical head support parts requiring ultra rigidity.
* . CNC 6061-T651 American alloy for head parts requiring stability.
* . Dual ball raced seesaw support in center hub.
* . Dual ball raced radius arms for precision control.
* . Extra long washout base for increased lever stability.
* . Dual ball raced 120/140 CCPM swash plate.
* . Achievable pitch range of +15/-15 degrees of pitch.
* . High quality screw hardware.
* . 10mm Hollow hardened main shaft.
* . 8mm Spindle shaft.
* . Stainless steel 4.75mm OD Linkage balls.
* . One piece dampers.

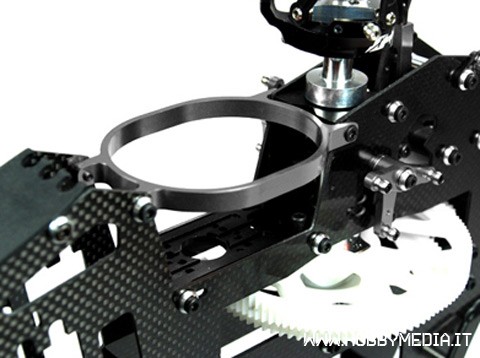

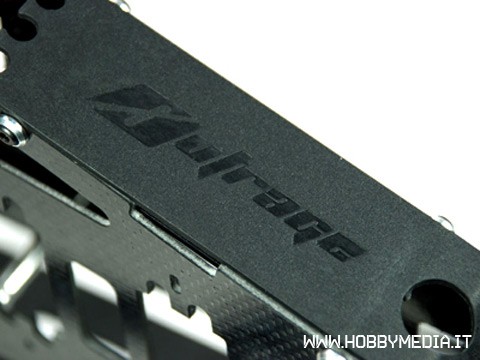

2. Frame System
* . Ultra compact frame technology for superior frame rigidity.
* . CNC 6061-T651 American alloy main shaft bearing blocks and mechanics.
* . High quality fiber reinforced injection molded plastics.
* . High quality screw hardware.
* . Multiple Electronic placement options.
* . Adjustable servo mounts for various size and brand servos.
* . Adjustable drive train for optional gear ratios.
* . Ultra high strength injection molded drive gears.
* . Zero pitch alignment points for easy head setup.
* . Optimal servo positions for increased accuracy in control.
* . Break-away canopy tabs.
* . Component positions mounted high in frame enhancing axial CG for improved 3D reactions
* . Tail servo semi concealed within the frames for a compact look .Motor mount for 25 and 30mm M3 bolt spacing, ties into main bearing block .Motor shaft pinion support for 5mm and 6mm shafts (changable bearing for 6mm)
* . Frame support bracket around the motor for strength .The electronics tray includes wire guides for a clean installation .New improved one way bearing assembly
* . 0.8 Mod main gear
* . Pinions for 5 and 6mm shafts available (5mm: 11-16T, 6mm: 12-16T) .Battery tray removable for fast battery changes .Suitable for 6 - 12 cell battery packs .Wide variety of usable motor KV’s and motor dimensions .One piece plastic base tray.

3. Tail System
* . Extend boom length forimproved forward flight tracking and superior tail authority in extreme 3D conditions.
* . xx Ball bearing tail pitch control system for smooth precise control.
* . Torque tube design for efficiency.
* . Ultra high strength Injection molded torque tube gears.
* . High quality Carbon 95mm tail blades.

4. Canopy
* . Aerodynamically formed canopy shape for enhanced flight characteristics.
* . Light weight construction fiberglass composites.
* . High quality Canomod™ airbrush fiberglass canopy.

Componenti compatibili:

Performance Choice Servos
* JR DS8417
* JR DS8717
* Futaba S9452
* Futaba BLS451
* Ino-Lab HG-D751MG
* Ino-Lab HG-D760MG
* Ino-Lab HG-D760HB
* Outrage Torque 9180
Beginner Choice Servos
* JR DS281
* Futaba S9252
* Futaba S3001
* Hitec HS-5965MG
* Hitec HS-5475HB
Performance Carbon Fiber Main Rotor Blades
* SWE Symmetrical CF 600mm Main Blade (SWE-600DCW)
* SWE Symmetrical CF 620mm Main Blade (SWE-620DC)
* SWE Symmetrical CF 630mm Main Blade (SWE-630DC)
* Rotortech 3D PRO 610mm Symmetrical Blade (CN266166C)
* SAB “RED DEVIL” 600mm Sym CF Carbon Fiber Main Blade
* SAB “RED DEVIL” 620mm Sym CF Carbon Fiber Main Blade
Budget CF and Fiberglass Blades
* SWE Symmetrical FRP 550mm Main Blade (SWE-600DW)
* PRO 3D CF Carbon Fiber 600mm main blade (White/Black 3D)
* RJX 600mm FRP Main Blades
Performance Tail Blades
* SWE Sym Y Type CF Carbon Fiber 95mm Tail Rotor Blade
* Radix 95mm Tail Blades - YEI-YB-95
* 95MM CF Tail Blade (EDN-1078)
* Rotortech 95mm CARBON FIBER TAIL BLADES
Recommended Gyros
* Spartan DS760 With JR DS8900 Servo
* JR 770 with DS8900 Servo
* Futaba 611 with S9256 Servo
* Futaba GY401 with S9254
* Solid G Heading Hold Gyro with JR DS8700G
