XRAY XB9: Buggy da competizione a scoppio in scala 1:8

16 Dic 2011

Di Drift M@ster - Buggy, Scala 1:8, Xray

xray-xb9-buggy-1

Juraj Hudy e il team di progettazione della XRAY ha sviluppato una buggy completamente nuova (con l’introduzione del sistema “Multi-Flex”).
La XB9 ha un nuovo telaio di alluminio Swiss 7075 T6 lavorato con macchine CNC più stretto che è più flessibile longitudinalmente e più rigido in direzione laterale. Il pacco batterie è stato spostato in avanti per garantire un migliore equilibrio. Anche varie parti della trasmissione, realizzate in HUDY Spring Steel, sono state migliorate per una maggiore affidabilità ed efficienza con una massa inferiore.

xray-xb9-buggy-2

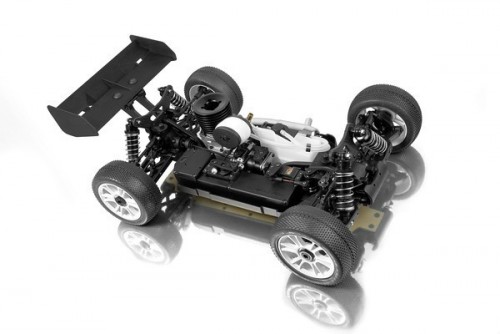

xray-xb9-buggy-3

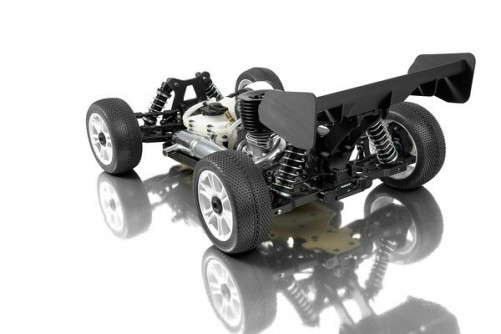

xray-xb9-buggy-4

Caratteristiche dalla Press Release (in inglese):

• All-new XB9 platform
• Innovative XRAY Multi-Flex™ setting
• All-new and improved weight balance and weight distribution
• Easy chassis flex setting for traction and stability adjustment
• More forgiving and easy-to-control handling
• Long-term tested by team and regular drivers in all standard conditions
• Focus on smallest details to increase performance, handling, and reliability
• All-new shocks with completely redesigned parts were long-term tested at tracks and using special simulation equipment for extreme overload
• New drivetrain parts for increased performance, weight balance, traction, and reliability

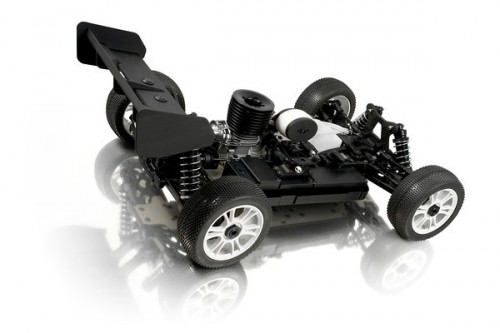

xray-xb9-buggy-5

All-new parts:
• New narrower chassis is more flexible in longitudinal direction and stiffer in lateral direction
• New chassis flex adjustment
• New radio box plate with batteries relocated to front
• New side guards with Multi-Flex™ adjustment offer improved side protection against dirt and protection of the fuel tank
• New high-downforce body with side guides and improved engine cooling
• New rear wing with increased side stability and increased downforce
• New rear wing was specifically designed to work with the new body
• New more-reliable central drivetrain with larger outdrives and new central drive shafts with 3mm pins
• New drive shaft locking rings prevent the driveshaft from coming apart
• New drive shaft rubber covers protect the CVD drive shafts from dirt
• New front & rear drivetrain ratios feature 12T pinion gear and 40T diff gear
• New 13T clutchbell and central diff 46T spur gear
• New front & rear lowered shocktowers with one-line optimized shock positions
• New big-bore, long-stroke shock construction featuring all-new shock parts
• New increased shock stroke for increased suspension downtravel
• New reinforced shock ball-joints and shock balls with increased movement
• New hardcoated shock bodies with black coating
• New lower shock nut with shock shaft centering
• New shock collar for increased suspension downtravel
• New ultra-precise 6-, 8- and 10-hole shock pistons with different hole diameters
• New longer shock shafts
• New ultra-fine shock protective rubbers with new construction and mounting
• New rear uprights with dual holes for short and long arm mounting
• New rear suspension arm gives possibility to adjust the length of the arm depending on the track conditions
• New optimized shock positions on front & rear suspension arms
• New front suspension arms allow mounting of 5° king-pin steering block without needing to use offset wheel adapters
• New steering plate with 3 different Ackermann positions
• New improved, higher-precision servo saver
• New front brace
• New lightweight drivetrain parts
• New updated rear wing holders
• New body mounting via 1 front and 2 rear body mounts
• New sealing between body and side guards uses Velcro tape to prevent dirt getting to the chassis
• New central differential mounts
