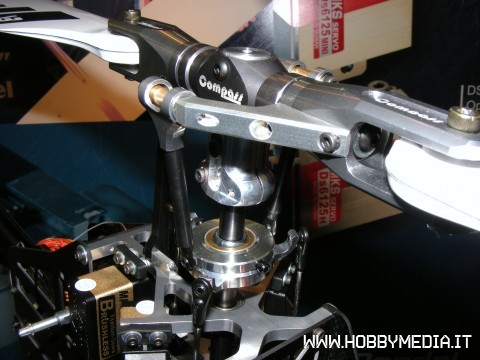

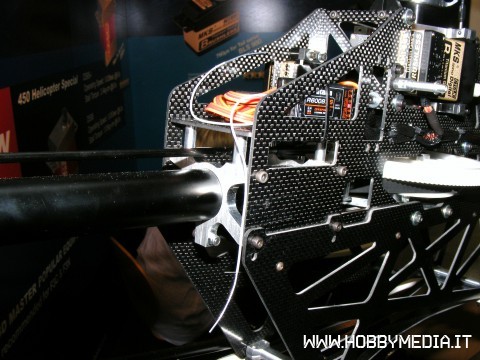

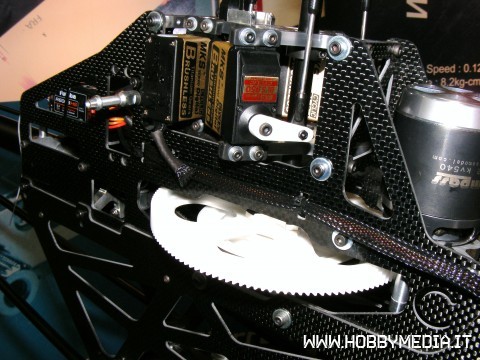

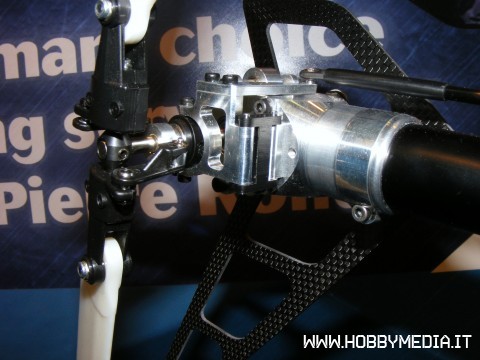

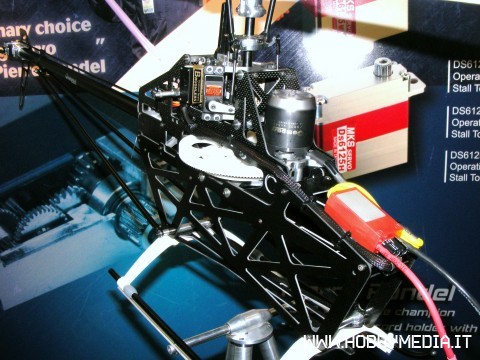

Fra i nuovi elicotteri presentati alla fiera del modellismo di Norimberga abbiamo trovato il nuovo Compass Atom 7HV classe 700 disegnato per utilizzate batterie LiPo 12S. Fra le caratteristiche di questo elicottero abbiamo il telaio realizzato in fibra di carbonio, un tenditore per la cinghia del rotore di coda automatico per aiutare a tenere la cinghia sulla puleggia anche nelle manovre piu’ estreme, testa del rotore flybarless, piatto oscillante 120° CCPM , tailboom da 25 mm e vassoio dei pacchi batterie disegnato per facilitarne il montaggio.
L’elicottero dovrebbe essere disponibile nei negozi di modellismo a partire dal prossimo Aprile.
Caratteristiche Compass Atom 7HV
– 120° CCPM without push/pull and absolutely straight rods.
– Very strong maingear with 136 modul 1 teeths.
– Automatic belt tensioner.
– 25mm Tailboom
– two Idlers with normaly no contact helps to hold the belt on the pulley during hard manouvers.
– Nearly every motor will fit on the motormount without any changes on it.
– Tailbelt with 9mm width for the hardest 3D stunts.
– Battery-Tray for easy batterie changing with just one bolt.
– designed to have a high CG. That means the batterie hang as close as possible to the bearing block and all servo positions are higher than the Tailboom.
– Short 10mm mainshaft for highes resistance against bending.
– 2 Carbon Frame stiffner connect both Bearingblocks to a strong box and make the frame extremly stiff.
– The frame is designed that the upper part will survive in most cases of crash and the repair is as easy as possible.
– All servos are mounted within 10min without difficulties.
– 3mm strong sideframes at the tailcase.
– Stronger FBL Head with spezial rods and strong m4 bolt for highest forces.
